How To Change Kitchen Range Hood Grease Filter Charcoal Pad (Open Type):

There are two types of non-ducted range hood filters: locked-type (w/, w/o lens) and open-type.

Open Type

Step #1

Step #2

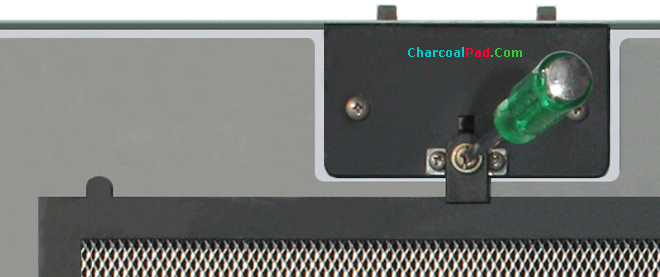

1.	Remove the screw that connects (a) and (c).
2.	Separate (a) and (b) using a flat-head screwdriver, from the left (head) side of (a).

1.	Flip over (b).
2.	Unscrew all 4 screws that connects (b) and (c).

Step #3

Step #4

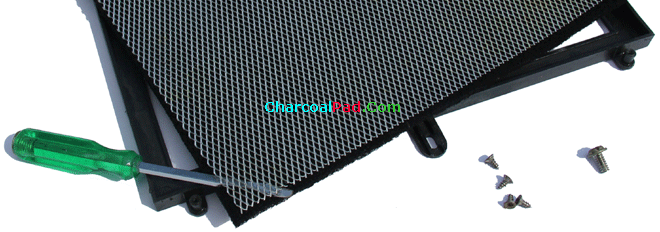

	Remove (c) from (b). Press both sides of (c) at the same time.

	Replace the charcoal pad, and wash the mesh if needed.
